jSDN Yacht Designer

This page shows a collection of designs that have been modelled with jSDN. Ckick on the images to view them full size. They correspond to actual output of jSDN. If you want to share a design, please send a mail to: jsdn-users@ingeniatecno.com.

Esta página contiene una colección de diseños modelados con jSDN. Haz click en las imágenes para verlas más grandes. Estas son salida directa del programa jSDN. Si quieres compartir un diseño, envía un correo a: jsdn-users@ingeniatecno.com.

Name	Designer	Modeller	Description

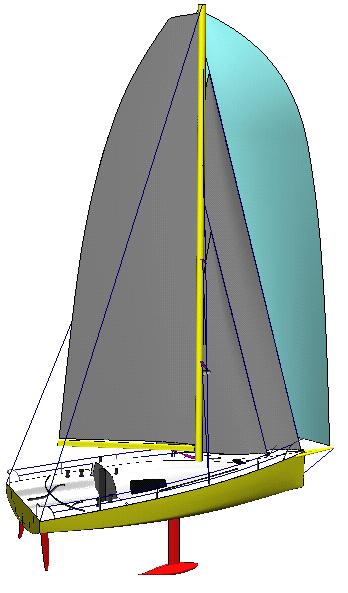

Este Class 40	Alfonso Avilés Balance Arquitectura Naval	Humberto Martínez	A new Class 40 boat (2008), designed in Spain and built in Italy by Cantieri Navali D'Este

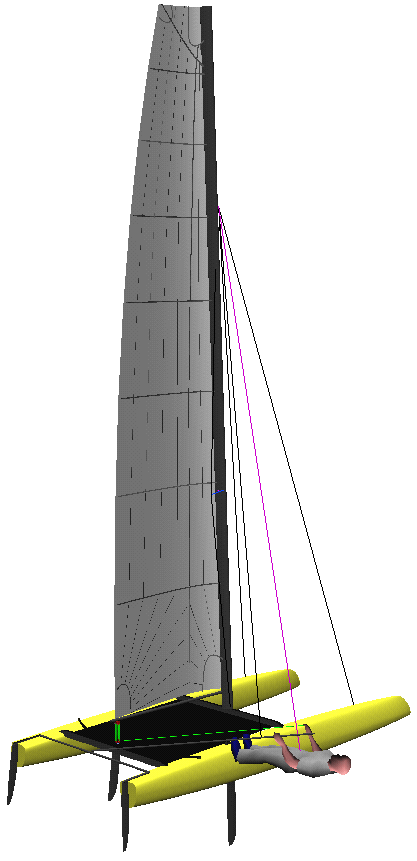

A-Class	Alfonso Avilés Balance Arquitectura Naval	Humberto Martínez	A model of the A-Class catamaran currently raced by Humberto Martínez (ESP-85). The first A-Class catamaran designed and built in Spain. You can learn more by visiting: http://www.balance-an.com
Trimaran	Francisco de Miguel	Francisco de Miguel	31 m LOA trimaran for offshore round the world racing

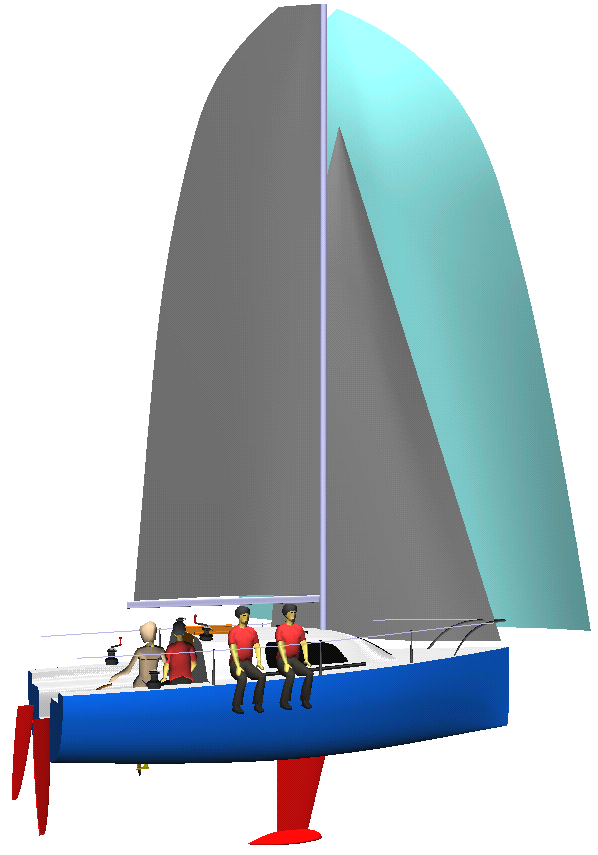

Mini 750	Humberto Martínez	Humberto Martínez	7,5 m LOA concept curiser-racer, inspired in the open classes, but with emphasis in habitability and performance in IR rating (Spanish rating).

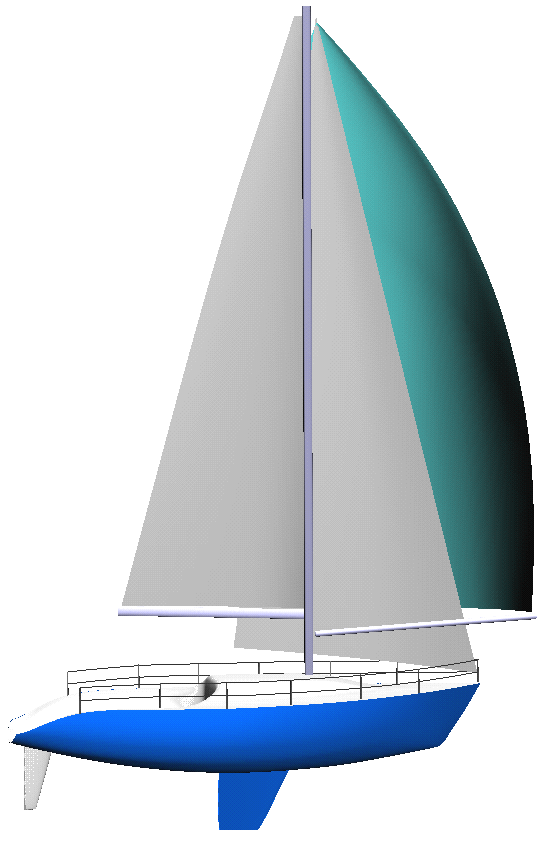

YD-40	Larsson & Eliasson	Humberto Martínez	Design from the book "Principles of Yacht Design". A must in every yacht design book shelf

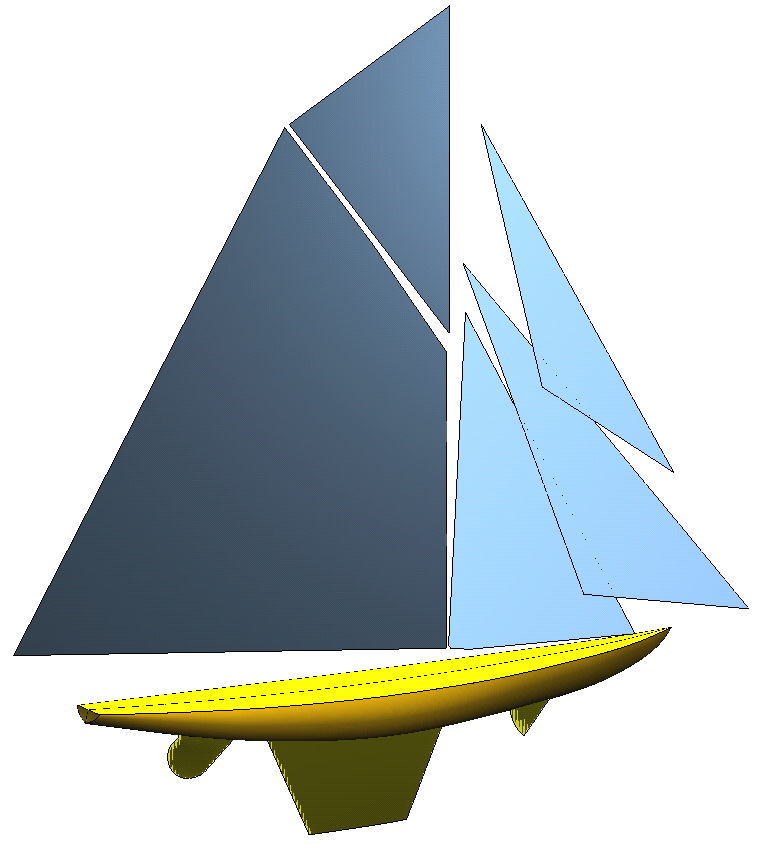

Pilgrim	George A. Stewart	Humberto Martínez	Candidate design for the 1893 America's Cup, incorporating double fore-aft rudder and bulbed keel

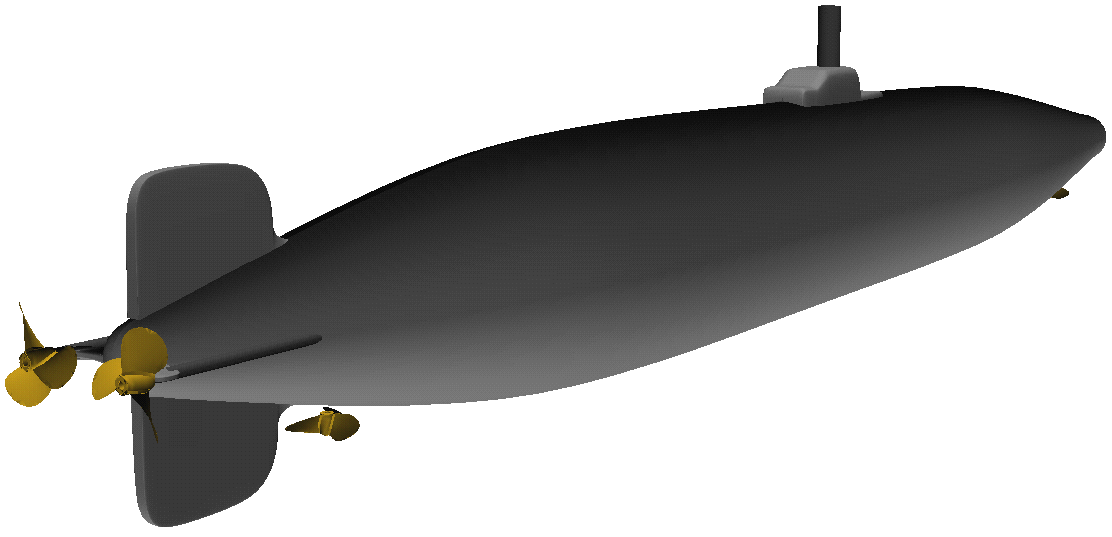

Submarino Peral	Isaac Peral	Humberto Martínez	First fully operational war submarine (1888), initially known as Torpedero Submarino. She was able to navigate for 1 hour at 9 m depth. She also performed several torpedo attack tests both at day and night

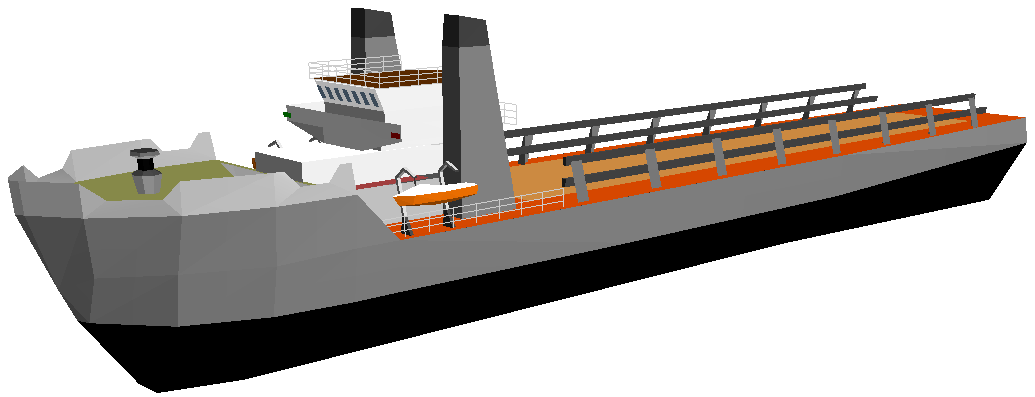

Tugboat			Tugboat model imported from a 3DS file

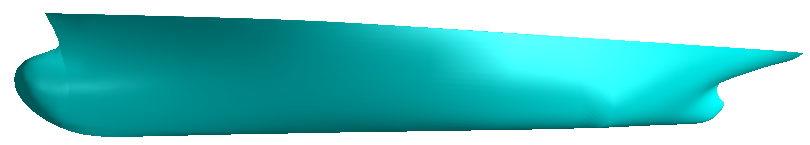

Hamburg	MARNET		Sample hull from the MARNET database
